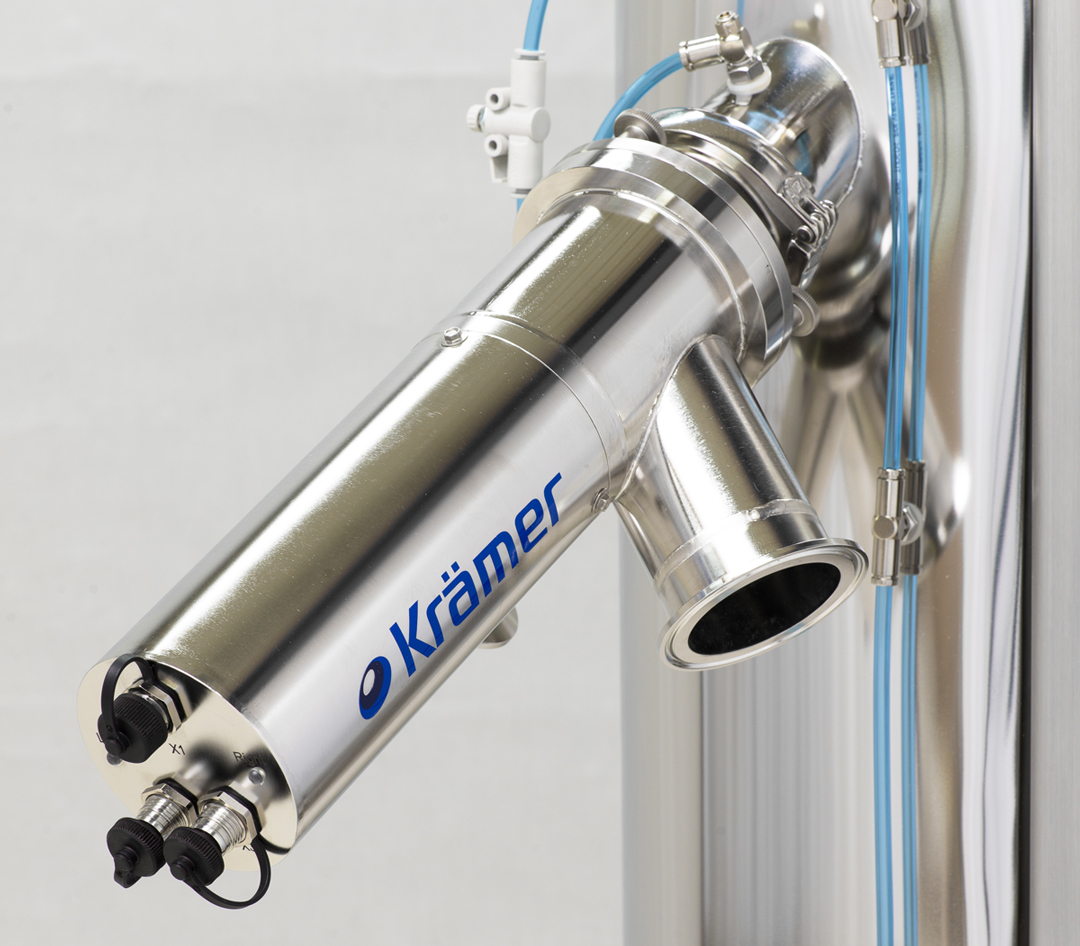

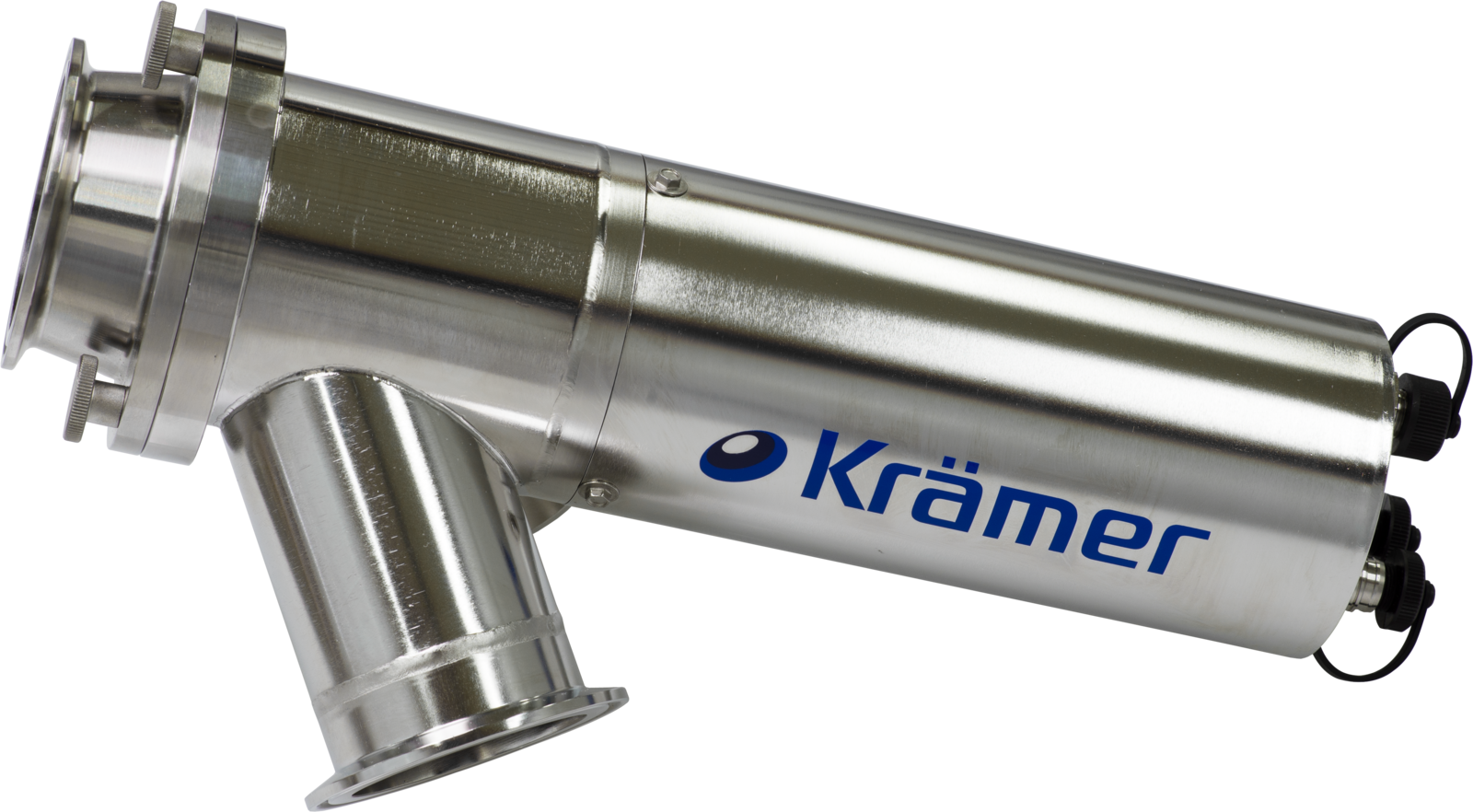

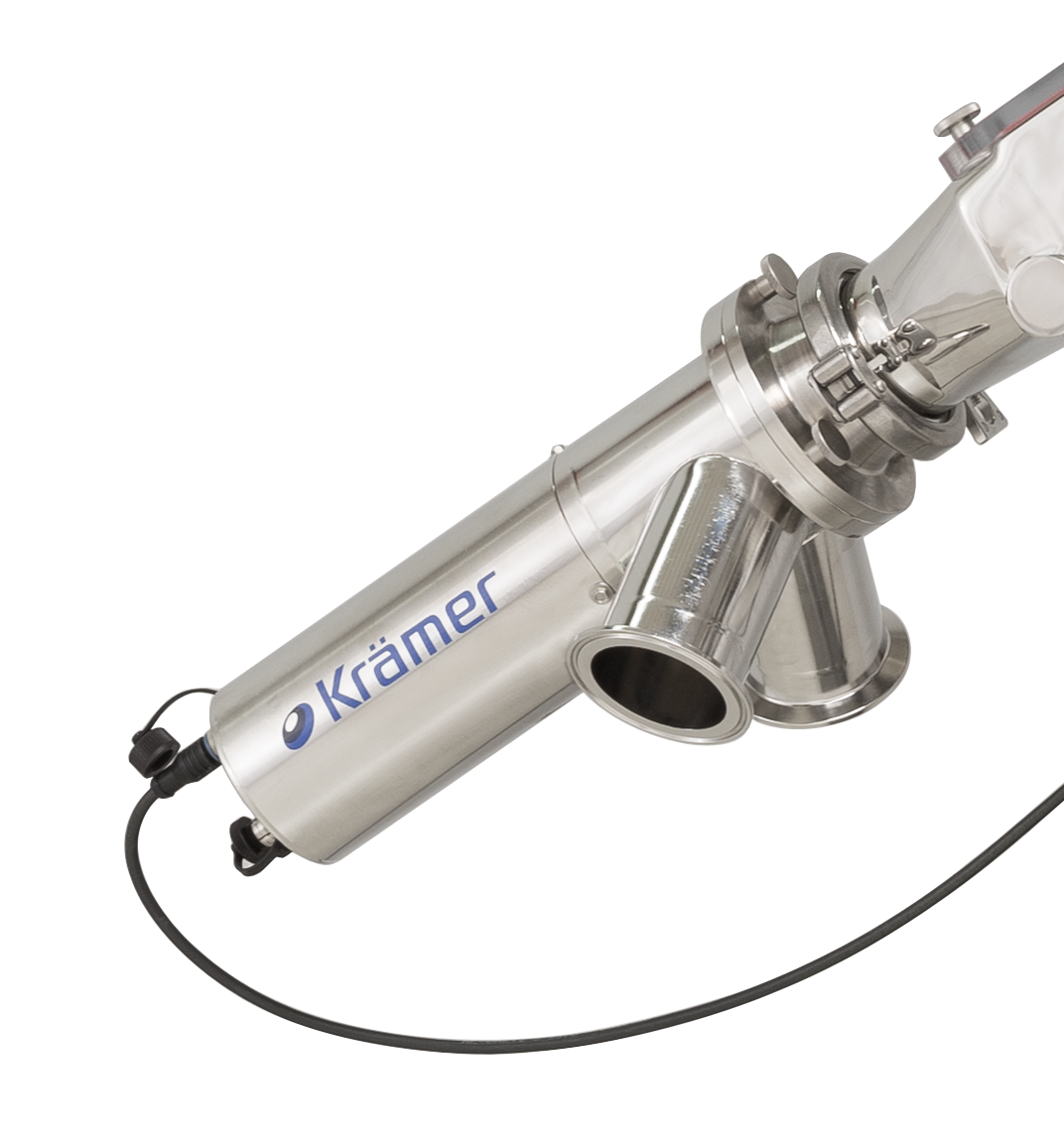

Diverter for simple solutions

KV2020

Electronically controlled 2-way diverter used for continuous filling of containers with tablets or capsules.

  • Available as DT (dust-tight) and WIP (Wash-in-Place) version
  • Automatically processed filling of two batches, alternating
  • Compatible with deduster models:
    – KD7015, KD7035 and KD7075
      process controlling either by deduster or
      tablet press / capsule filling machine
    – KD7010 and KD7030, KD7070, KCP10 and KCP15
      process controlling by tablet press / capsule filling
      machine only
  • Classification: Atex Zone II 2D/- Db 140 °C
  • Certification: OEB5 (<1 μg/m³) acc. SMEPAC
Diverter Outlet
2
Control
Automatic

Specifications

Number of outlets

2

Power Supply

24 VDC

Peak current

0.5A

Drive unit technology

Gear motor

Product contacting parts

AISI 316L, HMPU7

Weight

4.3 kg

Water consumption

Ø6/4mm, 16 l/min (p=2 bar)

Product inlet

DIN 50, 2", 2.5", 3" tri-clamp

Product outlet

ISO DN 50 tri-clamp

Protection rating drive unit

IP65

Protection rating housing/controller

IP65

Processing of tablets (var. forms ) Ø3-35 mm

Processing of mini/micro-tablets Ø1.5-3 mm

Processing of effervescent tablets Ø25-35 mm

Processing of capsules Nr. 4-00

Conveying speed mini/micro-tablets <Ø2.5 mm

10'300'000 tabs/h

Conveying speed tablet Ø5 mm

6'300'000 tabs/h

Conveying speed tablet Ø13 mm

574'000 tabs/h

Conveying speed tablet Ø20 mm

240'000 tabs/h

Conveying speed tablet Ø25 mm

95'000 tabs/h

Conveying speed tablet Oblong 16.3 x 7.6 x 5.7 mm

770'000 tabs/h

Conveying speed capsule size Nr. 4

300'000 caps/h

Conveying speed capsule size Nr. 3

300'000 caps/h

Conveying speed capsule size Nr. 2

300'000 caps/h

Conveying speed capsule size Nr. 1

300'000 caps/h

Conveying speed capsule size Nr. 0

300'000 caps/h

Conveying speed capsule size Nr. 00

250'000 caps/h

Explosion protection ATEX 94/9/EG

II 2D/- Db 140 °C

OEL Level acc. SMEPAC

OEB 5

cGMP compliance

CE compliance

Option inlet adapter

Option outlet adapter

Option mini/micro-tablets

Option WIP manual/auto

Option jam sensors

Option filling level sensors

Option validation documentation

Option material certificates

Show more Close

Check the factsheet for further information
